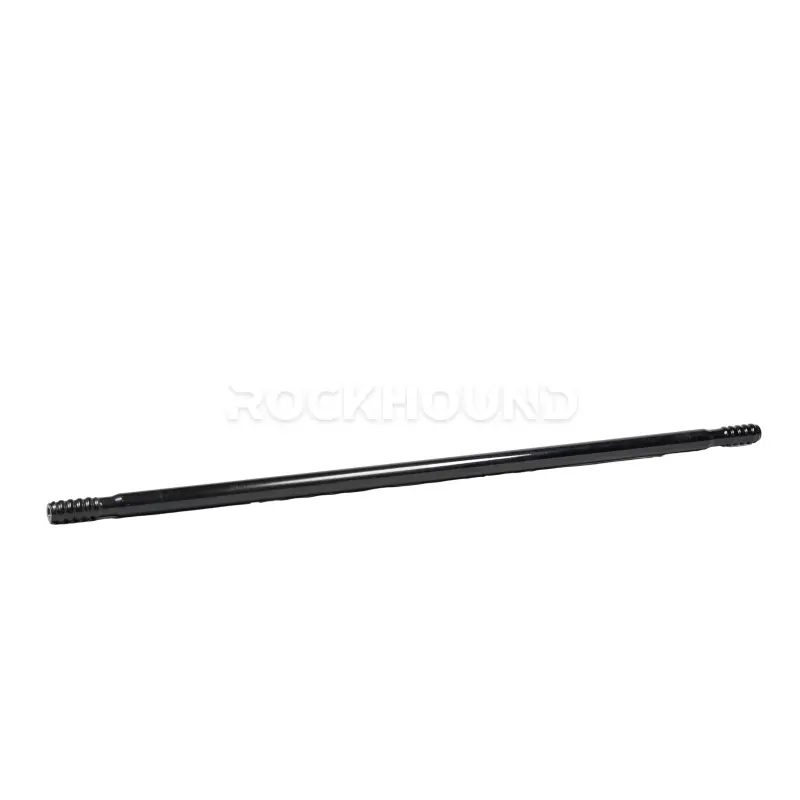

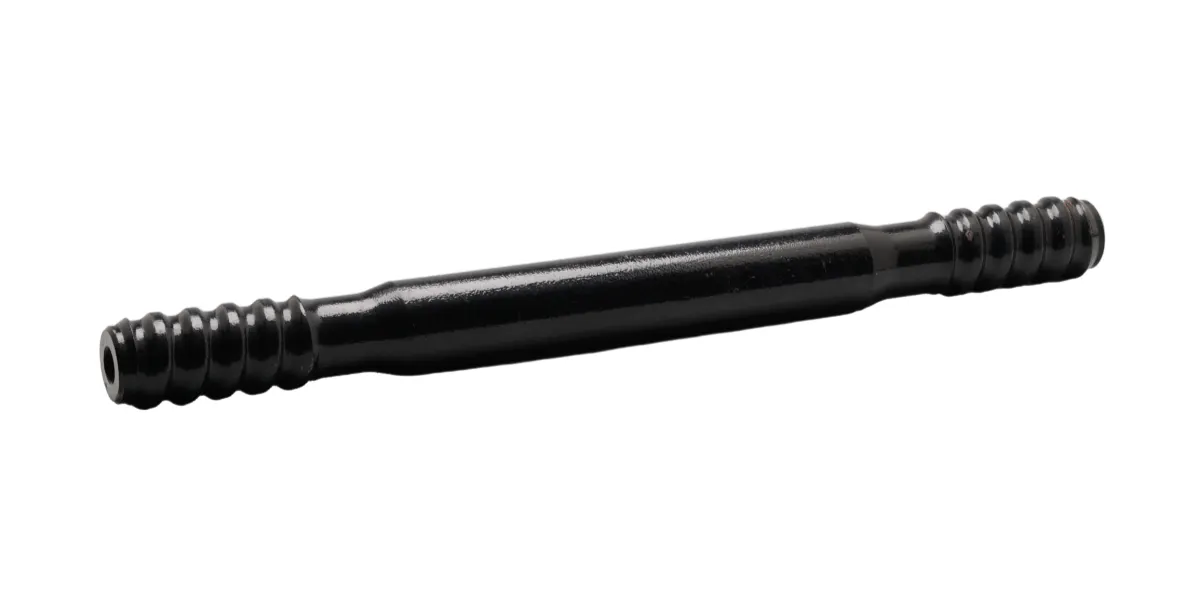

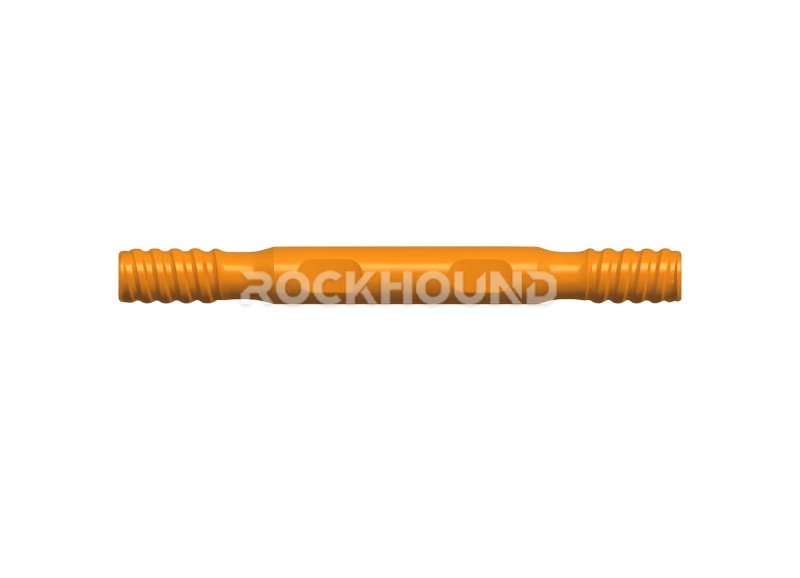

T38 Extension Rod Description
RockHound T38 Alargaderas are engineered to deliver maximum impact energy and durability in demanding top hammer drilling environments. Manufactured using premium Acero aleado ZK22CrNi3Mo, these rods are designed to handle the high-stress conditions of modern hydraulic rock drills.
Whether you need standard T38-D38-T38 extension rods, MF (Male/Female) rods for faster coupling, or T38 guide tubes for improved hole straightness, our products ensure reduced downtime and lower drilling costs per meter.
Material & Features
Raw Material：ZK22CrNi3Mo
RockHound utilize ZK22CrNi3Mo, a high-strength chrome-nickel-molybdenum alloy steel, specifically chosen for its excellent hardenability and toughness. Through advanced 20 horas carburization heat treatment, the rod surface achieves superior wear resistance while maintaining a flexible core to resist fatigue-induced breakage.
Material Comparison:Comparación de materiales de barras de perforación de rocas:23CrNiMo vs Sanbar64
Key Features:
Alta resistencia a la fatiga: The ZK22CrNi3Mo alloy significantly extends the service life in high-frequency impact applications.

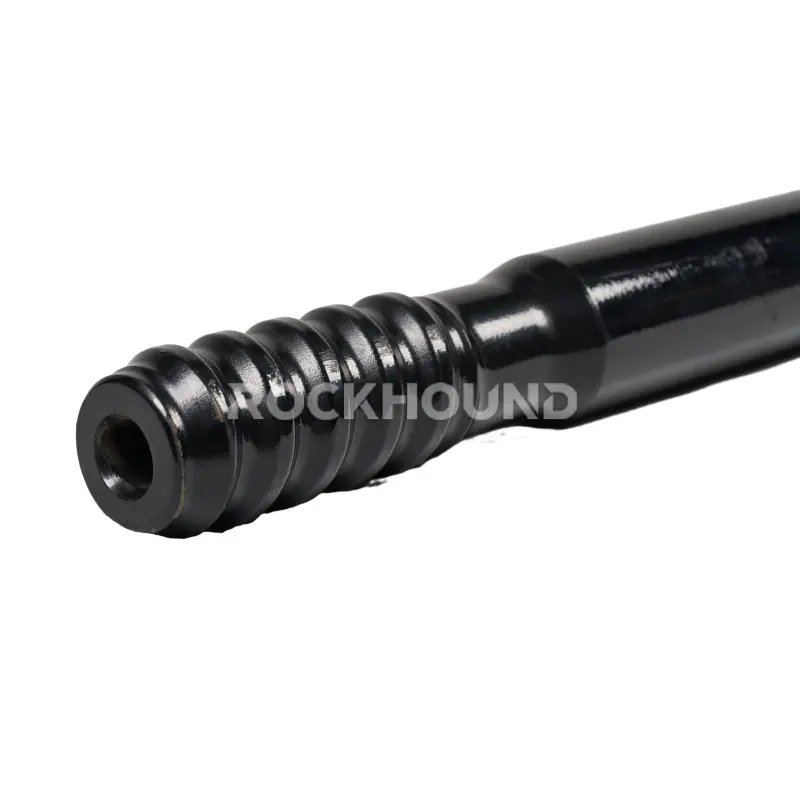

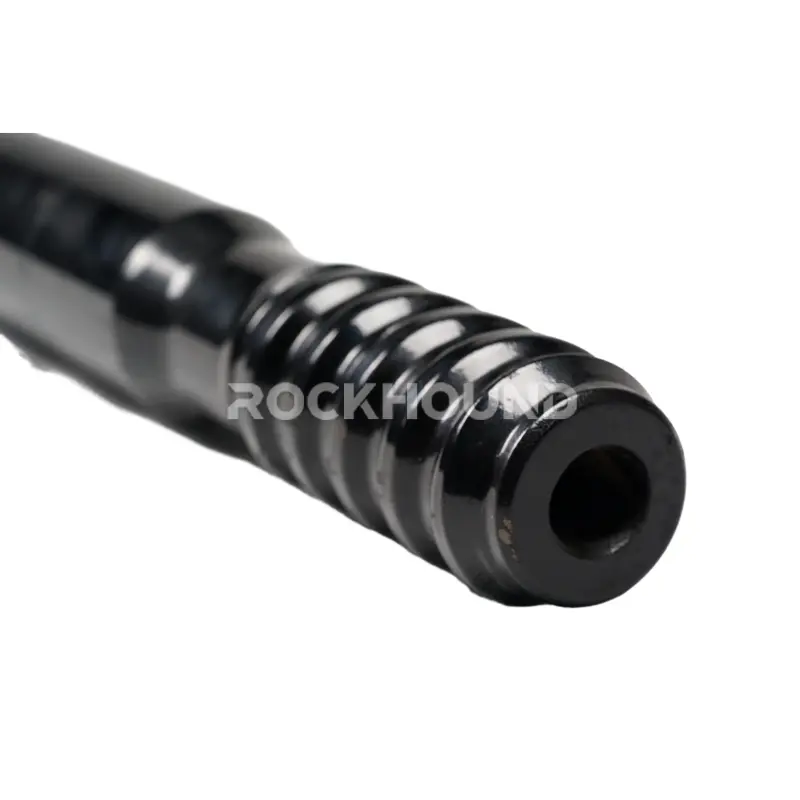

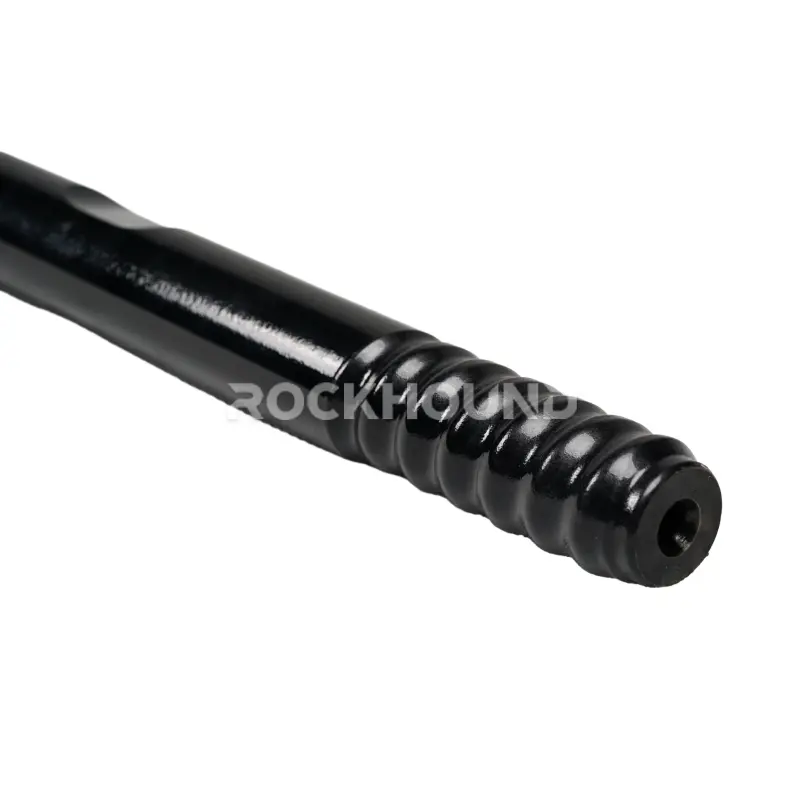

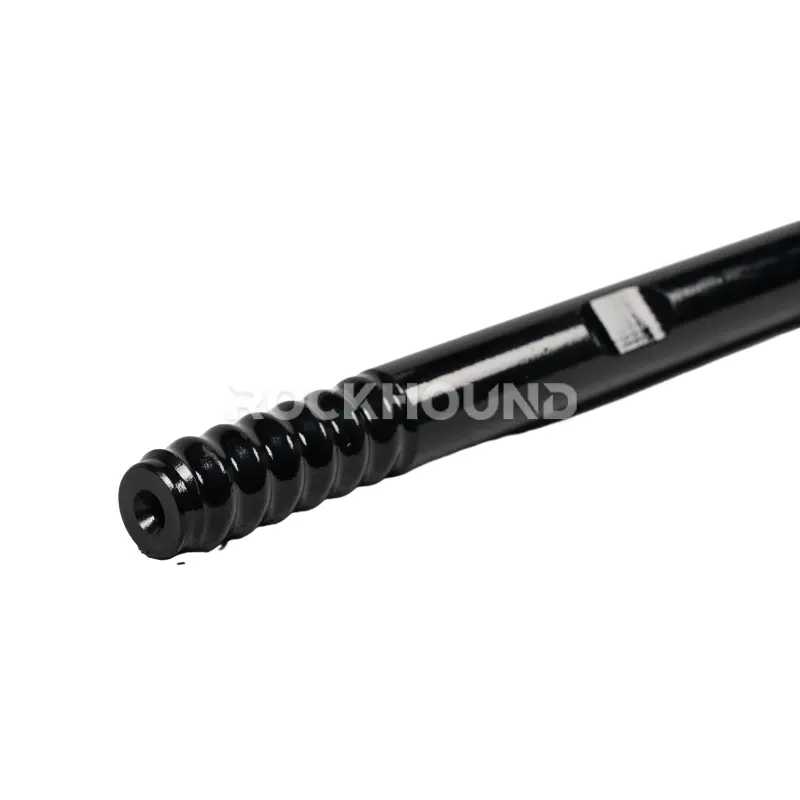

Roscas de precisión T38: CNC-machined threads ensure a perfect fit with shank adapters and bits, preventing energy loss and thread galling.
Optimal Straightness: Advanced manufacturing processes guarantee rod straightness, reducing hole deviation and stress on the drill string.
Diverse Configurations: Available in standard extension rods, Speed (MF) rods, and Guide tubes to meet various geological conditions.
Especificaciones

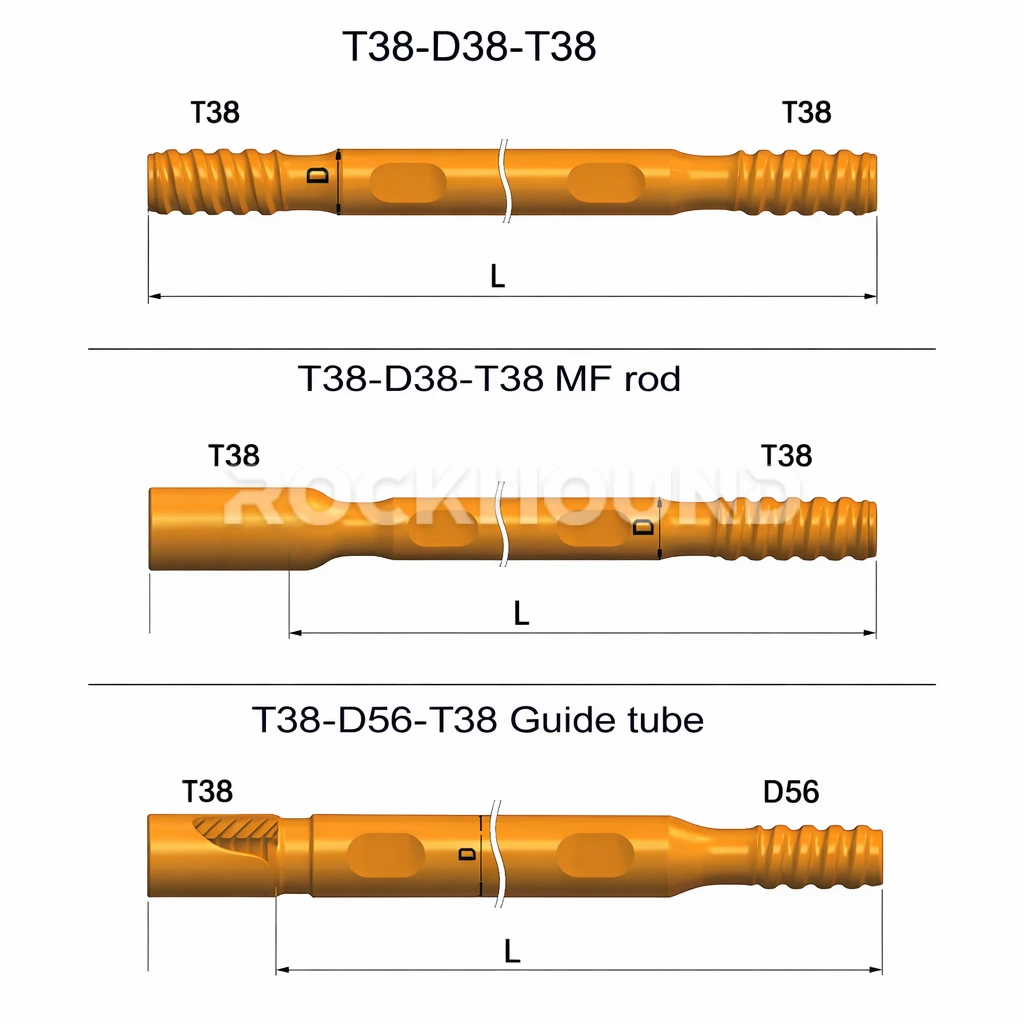

| Tipo de producto | Model | Longitud (mm) | Length (foot) | Diámetro (mm) | Diámetro (pulgadas) | Código del producto | Peso (kg) |
|---|---|---|---|---|---|---|---|
| Alargadera | T38-D38-T38 | 1220 | 4 | 38 | 1 ½ | 280-3812-7676 | 10.0 |
| Alargadera | T38-D38-T38 | 1525 | 5 | 38 | 1 ½ | 280-3815-7676 | 12.4 |
| Alargadera | T38-D38-T38 | 1830 | 6 | 38 | 1 ½ | 280-3818-7676 | 14.9 |
| MF Rod | T38-D38-T38 | 915 | 3 | 38 | 1 ½ | 290-3809-7676 | 8.3 |
| MF Rod | T38-D38-T38 | 1220 | 4 | 38 | 1 ½ | 290-3812-7676 | 10.9 |
| MF Rod | T38-D38-T38 | 1525 | 5 | 38 | 1 ½ | 290-3815-7676 | 13.3 |
| MF Rod | T38-D38-T38 | 1830 | 6 | 38 | 1 ½ | 290-3818-7676 | 15.8 |
| Tubo guía | T38-D56-T38 | 1220 | 4 | 56 | 2 ⅛ | 200-5612-7676 | 12.6 |
| Tubo guía | T38-D56-T38 | 1525 | 5 | 56 | 2 ⅛ | 200-5615-7676 | 14.0 |
| Tubo guía | T38-D56-T38 | 1830 | 6 | 56 | 2 ⅛ | 200-5618-7676 | 17.4 |
Field Performance: RockHound MF T38-R32 Drill Rods at Iron Mine — Real Test Data
The most relevant evidence for any drilling contractor is not the spec sheet — it’s what happens underground.
Resumen de la prueba
Ubicación: Mina de hierro, provincia de Hebei, China (-540 m bajo tierra)
Periodo de prueba: Julio-agosto de 2025
Condiciones de la roca: Coeficiente de dureza Protodyakonov f = 13-15 (UCS correspondiente: 130-150 MPa) - clasificado como roca dura a muy dura
Perforadora: Epiroc (Atlas Copco) Boomer 281
Perforadora de rocas: COP 1838HD+
Parámetros de perforación: Alimentación 75-80 bar | Impacto 180 bar | Rotación 190 bar | Descarga 10-12 bar
Especificación de la varilla: ZK23CrNi3Mo, H35 × 4,305 mm, T38/R32
Resultados de la vida útil de las barras de perforación
View Detail：Informe de pruebas de campo: Barrenas y brocas MF T38-R32 en Iron Mine
| Número de serie. | Vida útil / Metraje (m) | Modo de fallo |
|---|---|---|
| 1# | 3529 | Rotura en la rosca del extremo pequeño (extremo de la broca) |
| 2# | 3753 | Rotura en la rosca del extremo pequeño (extremo de la broca) |
| 3# | 3478 | Rotura en la rosca del extremo pequeño (extremo de la broca) |
| 4# | 3389 | Rotura en la rosca del extremo pequeño (extremo de la broca) |
| 5# | 3645 | Rotura en la rosca del extremo pequeño (extremo de la broca) |
| 6# | 3725 | Rotura en la rosca del extremo pequeño (extremo de la broca) |
| 7# | 3712 | Rotura en la rosca del extremo pequeño (extremo de la broca) |
| 8# | 3549 | Rotura en la rosca del extremo pequeño (extremo de la broca) |
| Media | 3597.5 m | Rotura en la rosca del extremo pequeño (extremo de la broca) - 100% de las muestras |
Aplicaciones
RockHound T38 drilling tools are compatible with world-leading rock drill rigs (e.g., Epiroc, Sandvik, Montabert) and are ideal for:
Minería subterránea: Long-hole drilling and drifting operations.
Surface Quarrying: Bench drilling for limestone, granite, and aggregate production.
Construction & Infrastructure: Tunneling, slope stabilization, and foundation reinforcement.
Specialty Drilling: Using Guide Tubes for deep-hole drilling where hole deviation must be minimized.
Interchange OEM
T38 rods are high-quality alternatives to the following OEM series:
| OEM Brand | T38 Extension Rod Equivalent | T38 MF (Speed) Rod Equivalent |
|---|---|---|
| Sandvik | 7324-47xx-20 Series | 7324-15xx-20 Series |
| Epiroc | 905103xx Series | 905101xx Series |
| Mitsubishi | T38 Extension Series | T38 MF Series |
How To Maintenance T38 Extension Rod
Proper maintenance can increase your T38 rod’s lifespan by up to 30%:
Lubricación de roscas: Always apply high-quality thread grease before connection to prevent cold welding and ease uncoupling.
Proper Tightness: Ensure the drill string is properly tightened; loose joints cause excessive thread wear and heat damage.
Rotation Management: Avoid “dry firing” or idling the drill without contact, as this creates excessive vibration that leads to fatigue cracks.
Inspección periódica: Check for signs of thread deformation or cracks on the rod body. Replace components that have reached their wear limits to avoid in-hole breakage.
Almacenamiento: Store rods in a dry place or apply anti-rust oil if they will be unused for long periods.
How To Choose the Right T38 Extension Rod
1. Match the Rod Type to Your Drilling Method
2. Evaluate Rock Mass Hardness (UCS & f-Value)
Rod geometry and steel grade must be matched to the compressive strength of the rock being drilled.
| Rock Classification | UCS (MPa) | Protodyakonov f-value | Recommended Configuration – Top Hammer Drilling |
|---|---|---|---|
| Medio Duro | 60–100 MPa | f = 6–10 | Standard Extension Rod, D38 |
| Hard | 100–150 MPa | f = 10–15 | MF Rod with ZK22CrNi3Mo, optimized heat treatment |
| Very Hard / Abrasive | >150 MPa | f > 15 | Tubo guía + premium thread greasing protocol |
RockHound’s field test data from an iron mine in Hebei Province (f = 13–15, UCS 130–150 MPa) confirms a mean service life of 3,597.5 meters under COP 1838HD+ impact parameters — a meaningful benchmark for sizing rod replacement budgets in comparable geologies.
3. Confirm Compatibility with Your Rock Drill and Shank Adapter
4. Select Rod Length Based on Hole Depth and Bench Height
5. Factor in Drilling Parameter Envelopes
6. Calculate Total Cost of Ownership (TCO), Not Unit Price
7. Assess Supplier QAQC and Traceability Standards
Packaging & Labeling
All RockHound rock drilling tools are packaged to industrial export standards, ensuring product integrity from point of manufacture to job site delivery.
Drill rods are individually labeled with product code, shank specification, length, taper angle, and steel grade, then bundled and secured within a heavy-duty wooden export crate. Each crate is stenciled with the RockHound company logo on the exterior panel for clear brand identification and shipment traceability.
Producción conexa
FAQ About T38 Drilling Rods
ZK22CrNi3Mo is a premium high-strength alloy steel specifically designed for rock drilling. It offers a superior balance of toughness and fatigue strength. Combined with our carburization heat treatment, it provides a hard, wear-resistant surface while maintaining a flexible core to prevent brittle fractures during high-impact top hammer drilling.
Yes. Our T38 Extension Rods and MF (Speed) Rods are manufactured to industry-standard dimensions. They are 100% interchangeable with major brands like Epiroc (Atlas Copco), Sandvik, Furukawa, and Montabert. You can use our rods directly with your existing T38 shank adapters and bits.

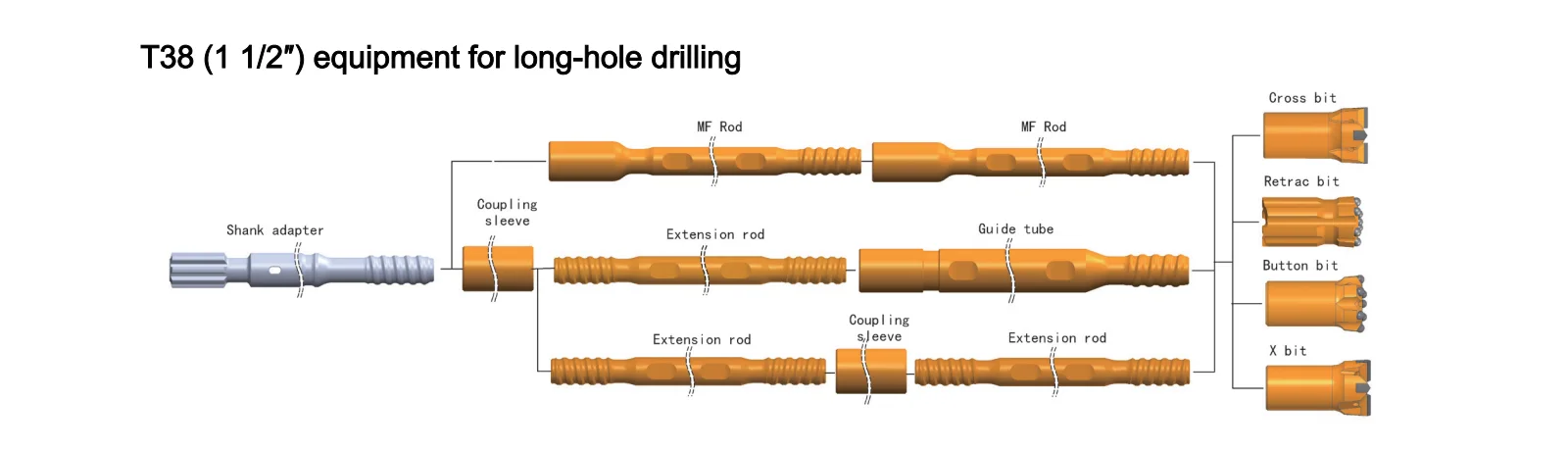

- Extension Rods (Male-Male): Require a separate coupling sleeve to connect two rods. They are the traditional choice for various bench drilling tasks.
MF Rods (Speed Rods): Feature a male thread on one end and a female thread integrated into the other. This design eliminates the need for coupling sleeves, ensuring tighter connections, better energy transmission, and faster rod changes.
T38 Guide Tubes (such as the T38-D56-T38) have a larger diameter (56mm) compared to standard rods (38mm). They provide much higher rigidity, which is essential for maintaining hole straightness and reducing hole deviation in deep-hole drilling or complex geological formations.
Based on our standard production line, RockHound offer several lengths to match your drilling depth requirements:
Alargaderas: 1220mm (4'), 1525mm (5'), and 1830mm (6').
MF Rods: Available from 915mm (3') up to 1830mm (6').
Guide Tubes: Typically provided in 1220mm, 1525mm, and 1830mm lengths. (Custom lengths can be manufactured upon request to suit specific project needs.)
To prevent premature wear or "thread galling":
Always use thread grease: Apply high-quality copper or graphite-based grease to all connections.
Ensure tight coupling: Never drill with loose joints, as this causes rapid thread deformation.
Inspección periódica: Replace rods when the thread profile shows significant thinning to avoid breaking a rod inside the hole.
Selection depends on your rock drill's power and the required hole depth.
For standard benching, T38-D38-T38 Extension Rods are common. If you prioritize drilling speed and ease of handling, Varillas MF are recommended.
For high-precision deep holes, we suggest incorporating at least one Tubo guía into your drill string.
